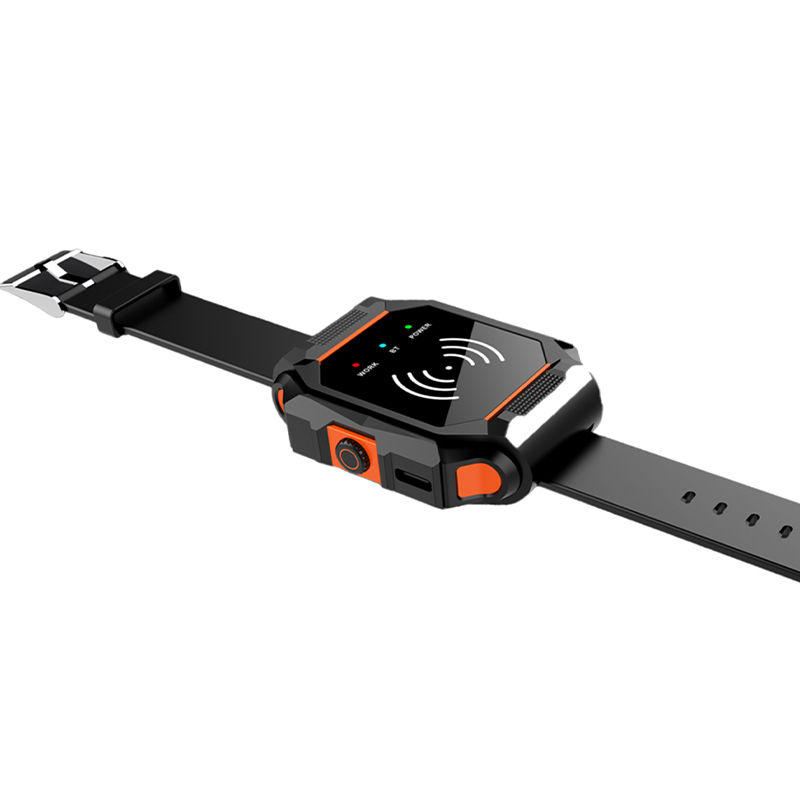

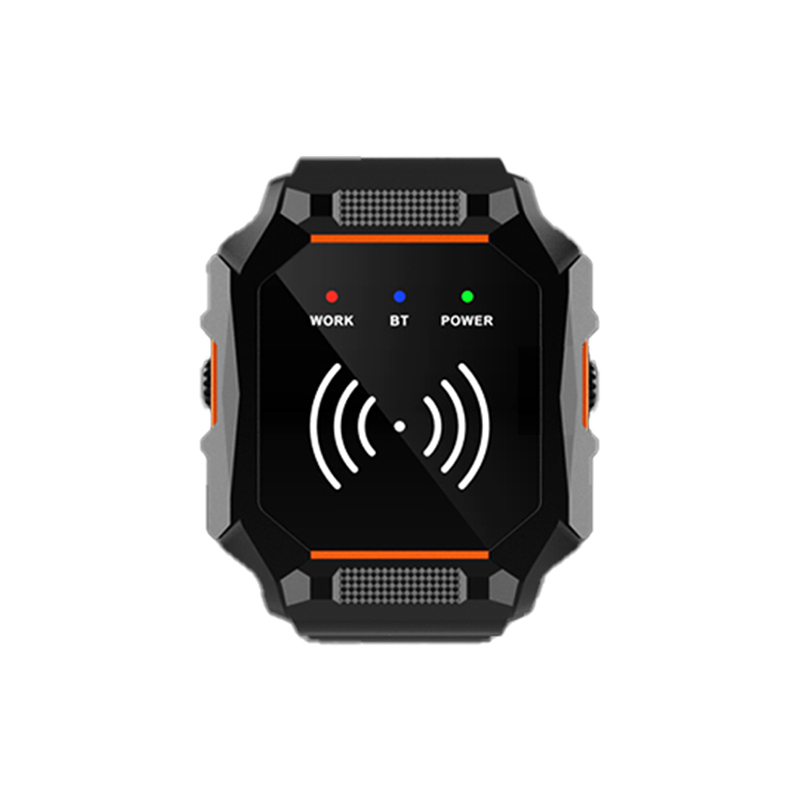

1. Wristband design for greater comfort
2. Miniaturization, low cost, and civilian use
3. Large data storage capacity and high confidentiality
4. Long reading distance ( 0.5-1 meter)
5. Fast communication speed and strong anti-interference ability
6. 1200mAh battery for longer battery life
|
Purchase code (product model) |
VH-HW73 |
|
Performance Parameters |
|
|
Dimensions |
53mm * 67mm * 7mm ¡À 2mm |
|
Net weight |
40g ( without strap) |
|
Shell material |
ABS+PC |
|
Buzzer |
Buzzer can be configured by software |
|
Communication interface |
Type-c |
|
Antenna Type |
Circularly polarized ceramic directional antenna |
|
Interface communication rate |
115200 bps |
|
Reading and writing distance |
0.5 - 1 meter (related to tag type, transmission power and application environment) |
|
RF port standing wave |
¡Ü 1 . 5 |
|
Receiving sensitivity |
- 62dBm |
|
Output power flatness |
¡À 0.2 dBm |
|
Output Power |
Software adjustable step interval 1.0 dB , +20 dB m ~ +30 dB m |
|
Support work area |
Global |
|
Working frequency band |
EPCglobal UHFClass 1 Gen 2/ISO 18000-6C |
|
Tag Protocol |
865-868 MHz; 902-928MHz |
|
Storage temperature |
-30~+70¡æ |
|
Operating humidity |
¡Ü 95% (+25¡æ) |
|
Operating temperature |
0 ~ +65¡æ |
|
Charging method |
Type-c interface charging output: 5V 0.5A~3A |
|
Battery capacity |
1200mAh rechargeable lithium battery |
|
Working hours |
8 hours/balanced mode |
|
Bluetooth module |
Bluetooth 4.2 complies with FC , CE, RoHS standards |
|
Application Industry |
Logistics, supply chain, clothing, warehousing |
