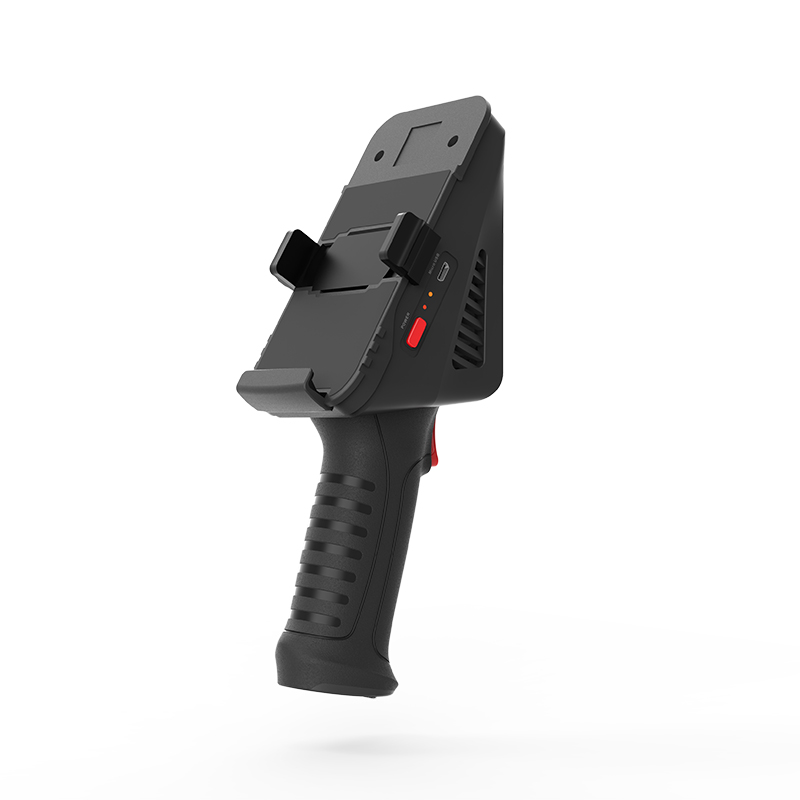

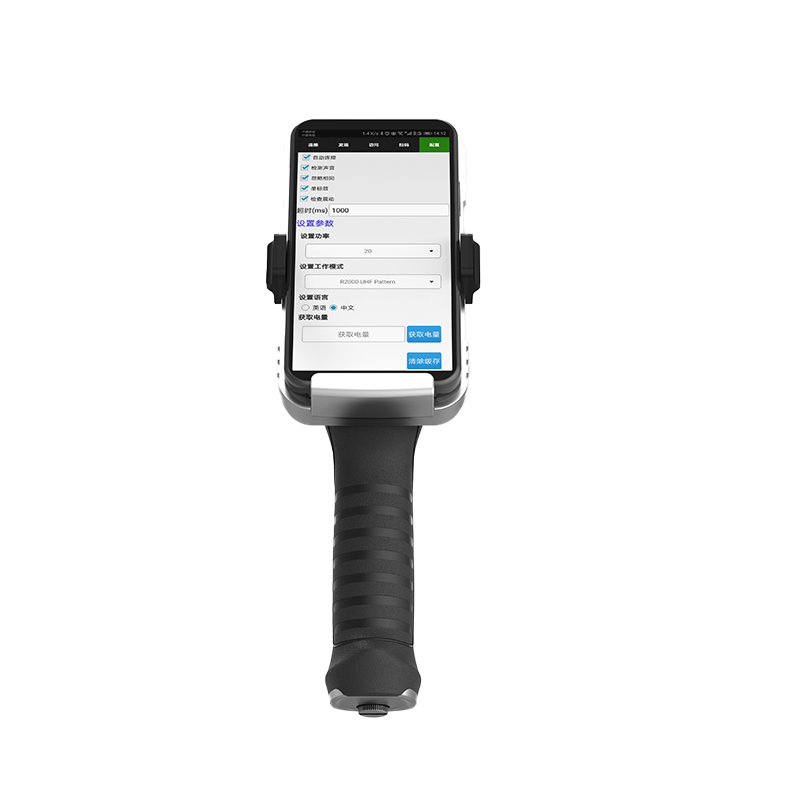

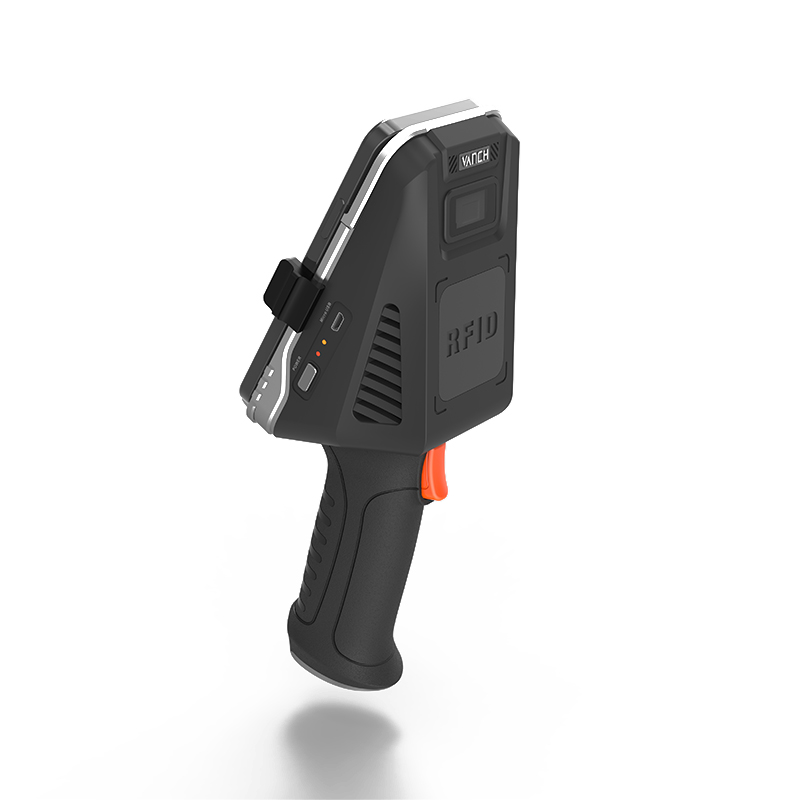

1. The shape design adopts ergonomic handle, which is comfortable to hold and will not be fatigued after long-term work;
2. RFID radio frequency module, using Korean PR9200 or Impinj R2000 UHF RFID chip, with excellent performance;
3. Fully support electronic tags that comply with EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C standards;
4. Working frequency 865-868MhZ, 902-928MhZ (can be adjusted according to the requirements of different countries or regions);
5. Support Bluetooth 4.2 wireless communication, Type-C-USB interface charging and data transmission;
6. Built-in high-capacity 6000mAh polymer battery for power supply;
7. LED work prompt status and buzzer sound mode to facilitate users to control the working status of the product;
8. Protection: isolation protection for all communication interfaces, lightning and anti-static protection for some key communication interfaces;
9. The application meets the requirements of warehousing and logistics supply chain, fixed asset inventory management, transportation vehicle management, manufacturing, etc.;
|
Model # |
VH-76 |
|
Performance Index |
|
|
RF radio frequency chip |
VANCH VM-61 (Indy R2000) or VM-5S (PR9200) |
|
Air interface agreement |
EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C/ ISO 18000-6B |
|
Working frequency |
902-928Mhz or 865-868Mhz |
|
Output Power |
VM-61 module, 20～33 dBm adjustable (1dBm step adjustable) VM-5S module, 20～27 dBm adjustable (1dBm step adjustable) |
|
FM mode |
Broad spectrum frequency hopping (FHSS) or fixed frequency, can be set by software) |
|
Receiving sensitivity |
＜﹣80dBm |
|
Inventory peak speed |
＞80 times/sec |
|
Reading distance |
VM-61 module, MAX. Reading distance>7m, (take AZ9662 label as reference) VM-5S module, MAX. Reading distance>4m, (take AZ9662 label as reference) |
|
Write distance |
0-0.2m (related to reader parameter configuration, antenna gain, tag type) |
|
Support area |
Europe and other regions that comply with ETSI EN 302 308 China, India, Japan, South Korea, Malaysia, Taiwan |
|
Antenna |
Dual-feed ceramic antenna 40*40mm circular polarization |
|
Communication rate |
9600～115200bps |
|
Communication Interface |
Type-C-USB |
|
Wireless communication |
Support Bluetooth 4.2 |
|
Barcode selection |
1D |
|
2D
Zebra: SE4710 / SE4750 / SE4750MR; Honeywell: N6603 |
|
|
Working status |
LED indicator, buzzer |
|
Reliable firmware upgrade |
Scalable upgrade mechanism |
|
Application software interface |
Provide API development kits and application routines based on Android and Apple iOS system platforms |
|
Mechanical electrical performance |
|
|
Size |
285(L)*85 (W)*40(H)mm |
|
Protection level |
IP64 |
|
Charger |
Input power: AC100～240V, 50～60HZ, 0.35A Output power: Typec 5.0V, 3.0A/buffer for 3 hours |
|
Battery capacity |
Rechargeable lithium polymer battery (3.7V, 6000mAH) |
|
Data line |
Type-C-USB 3.0 |
|
Weight |
＜1KG |
|
Humidity |
5% to 95%, non-condensing |
|
Operating temperature |
-20 ºC to +60 ºC |
|
Storage temperature |
-40°C to 80°C |
|
Compliance certification |
FCC, CE |
