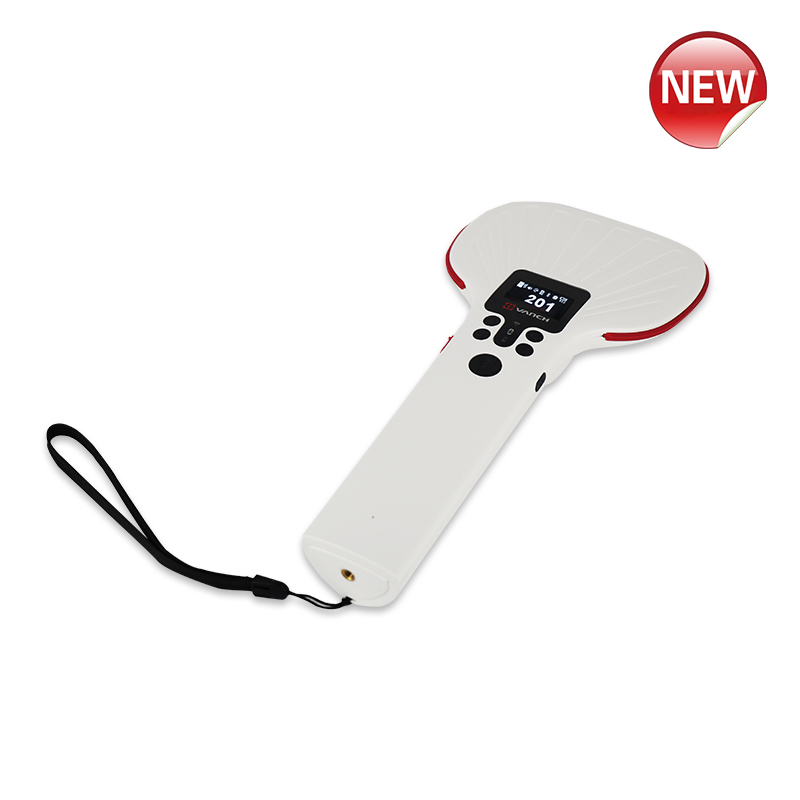

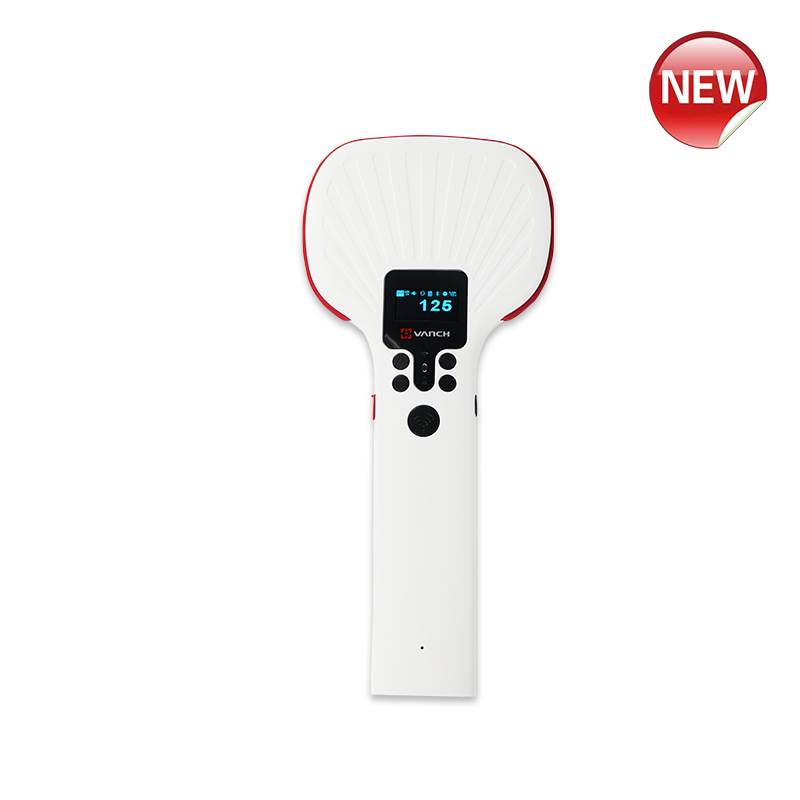

VH-88 Bluetooth UHF RFID Reader-Shenzhen Vanch Intelligent Technology Co,.Ltd

PRODUCTSCurrent location ：HOME > PRODUCTS > Bluetooth handheld reader

VH-88 Bluetooth UHF RFID Reader: 【Resume】：; 【Series】：Bluetooth handheld reader

1. Bluetooth communicated with existing PDA, mobile, tablet to save application cost;

2. Support ISO-18000-6C（EPC G2）protocol uhf rfid tag

3. 6m reading range based on inlay AZ9662.

4. Muti-working status indications(LCD, Vibration motor, LED, buzzer).

5. Built with PCB antenna to reduce weight of reader.

6. Reliable design for structure design to meet the harsh working environment.

8. Provide demo software and SDK based Android/iOS platform system.

Model No.	VH-88
Data Collection
RFID module	VANCH VM-61, Impinj indy R2000 chip
Frequency	865-868MHZ,902-928MHZ(customized optional)
Protocol	ISO18000-6C(EPC Global Class1 Gen2)
FM mode	Wide spectrum FM (FHSS) or fixed frequency set by software
RF output	20~33dBm adjustable
Antenna	High gain PCB antenna
Read range	Max. Read >6m, Max. Write >2m (refer to AZ9662 tag)
Option function	1D barcode scanner Zebra SE965 / Honeywell N4313 Code 39,Code 93, Code128,Codebar, EAN- 13,EAN- 8,UPC-A,UPC- E,ITF-14,UCC/EAN- 128,Matrix 25,EAN-128,ISBN etc.
Option function	2D barcode scanner Zebra: SE4710 / SE4750 / SE4750MR; Honeywell: N6603 PDF417,MicroPDF417,Composite,RSS,TLC-39,Datamatrix,QR code,Micro QR code, Aztec,MaxiCode,Postal Codes,US PostNet,US Plane,UK Postal,Australian Postal,Japan Postal,Dutch Postal
Communication Function
Bluetooth	Bluetooth 4.0
USB	USB2.0
Electrical performance
Display Screen	1.3 inch white OLED
Keys	6 keys including scan, power, manual etc.
Tag ID storage(NAND FLASH)	128MB
Read Indicator	Buzzer, OLED, LED
Battery	18650 lithium battery（3.6V,3000mAH，work for 3 hours full charged）
Power supply	Input: AC100～240V, 50～60HZ,0.35A Output: USB DC 5.0V, 2.0A
Desktop Charger	Optional
Mechanical parameter
Shell material	ABS+Silicon
Dimension	270(L)124 (W)35(H)mm
Net Weight	240g(including battery)
Work Environment
Humility	5% to 95%, non-condensing
IP Grade	IEC IP65
Working Temp.	-20ºC to +70ºC
Storage Temp.	-25°C to +75°C
