1. Using the IndyR2000 Reader chip, 5700mAh high-capacity battery chip to maintain sufficient power supply, with a reading distance greater than 10 meters;
2. The multi-tags reading speed can reach 700 per second, achieving batch data reading to increase efficiency for enterprises;
3. Seamless adaptation to mobile handheld terminals and consumer phones, saving you operating costs; Real time wireless connection can be established with mobile devices or backend systems via Bluetooth, enabling real-time data upload;
4. Equipped with a universal stand, it can be adapted to consumer Android phones such as Huawei and Xiaomi, reducing the cost of purchasing new devices for customers and improving operational efficiency;
5. In offline mode, the device can store 80000 barcodes/100000 RFID tags and support batch uploading of data.
|
Model |
VH-F90 |
|
|
Performance parameters |
||
|

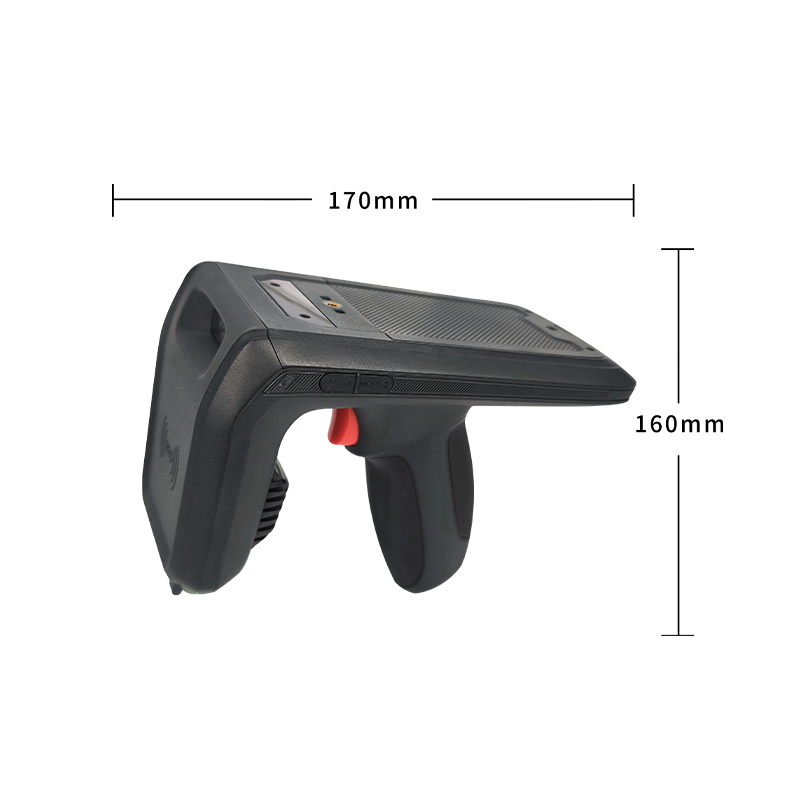

Size |
172 * 87 * 125mm (length x width x height) |
|
|
Weight |
480 grams (including battery) |
|
|
Configure |
UHF Reader/UHF Reader+barcode scanning |
|
|
Notification method |
Prompt sound; Multi color LED |
|
|
Battery |
Detachable polymer lithium-ion battery, capacity: 5700mAh; 3.8V Normal usage time: greater than 8 hours Standby time: 300 hours |
|
|
Key |
Power button; Trigger key; Mode switching key; Bluetooth key on |
|
|
Data interface |
Type-C |
|
|
Communication method |
Bluetooth 4.1 |
|
|
Power adapter |
Input: 100-240V, 50/60HZ 300mA Output: 5V, 2A |
|
|
UHF RFID Parameter |
||
|
UHF |
IMPINJ R2000 |
|
|
Supported standards |
ISO18000-6C/EPC C1G2 |
|
|
Group reading speed |
Over 700 tags per second |
|
|
Read distance |
More than 10 meters (depending on the label) |
|
|
Frequency range |
CHINA：920-925MHz USA: 902-928MHz EU: 865-868MHz JAPAN：916-921MHz (w LBT) JAPAN：916-923MHz |
|
|
Batch processing mode |
Can store 80000 barcodes/100000 RFID tags |
|
|
Usage environment |
||
|
Working temperature |
-4℉ to 122℉/-20℃ to 50℃ |
|
|
Storage temperature |
-30℃to 70℃ |
|
|
Humidity |
5% to 85%(non-condensing ) |
|
|
Drop specification |
Can withstand multiple impacts from a height of 3.9 feet/1.2 meters falling onto concrete floors (0 ℃ to 40 ℃) |
|
|
Rolling specifications |
Can withstand 200 rolling impacts of 1.6 feet/0.5 meters; Reaching or even surpassing IEC Rolling Specification Requirements |
|
|
Vibration |
4g SPK Sine (5Hz to 2KHz); 0.04g2/Hz random (20Hz) Up to 2KHz); 60 minutes per axis, 3 axes |
|
|
Static protection |
+/-6kV air discharge+/- 4kv contact discharge |
|
|
Barcode parameter |
||
|
Support one-dimensional barcode types |
Codabar, Code 11, Code 128, Code 2 of 5, Code 39, Code 93 and 93i, EAN/JAN-13, EAN/JAN 8, IATA Code 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, MSI, GS1 Databar, UPC-A, UPC E, UPC-A/EAN-13 with Extended coupon Code, Coupon GS1 Code 32(PARAF), EAN-UCC Emulation, GS1 Data bar |
|
|
Support two-dimensional barcode types |
2D Stacked: Codablock A, Codablock F, PDF417, MicroPDF417 2D Matrix: Aztec Code, Data Matrix, MaxiCode, QR Code, Chinese Sensible(Han Xin) code Postal Codes: Australian Post, British Post, Canadian Post,China Post, Japanese Post, Korea Post, Netherlands Post, Planet Code, Postnet |
|
|
Bluetooth Communication |
||
|
Bluetooth class |
||
|
Bluetooth version |
Bluetooth 4.1 |
|
|
Other |
||
|
Certificate |
CE/CCC/UN38.3/RoHS |
|
|
Standard Accessory |
Adapter/Data Cable/Battery |
|
|
Option accessory |
Triple charging dock charger/Triple charging adapter/Battery/Bracket |
|
