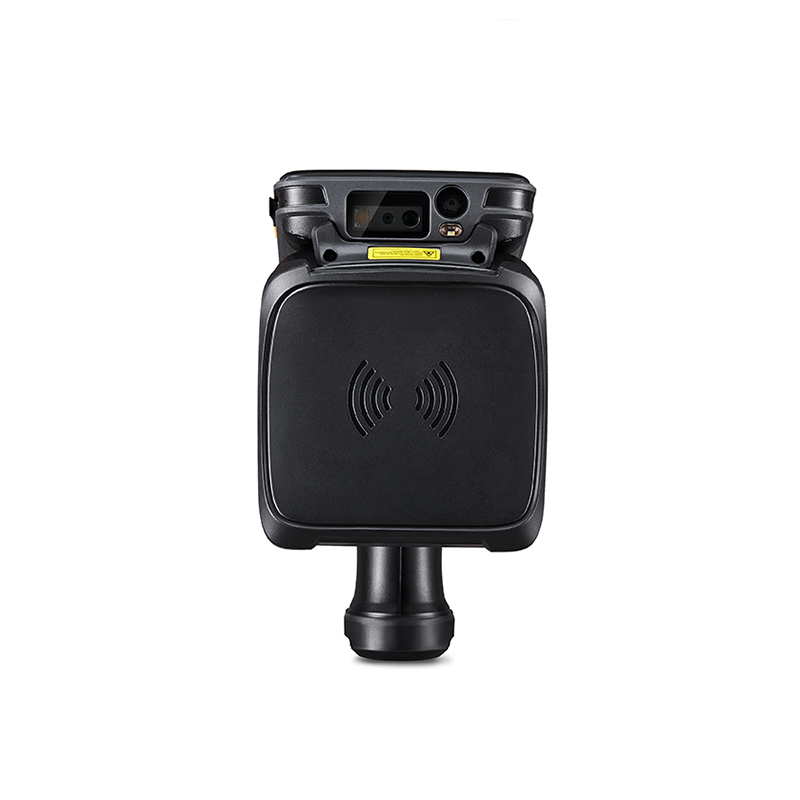

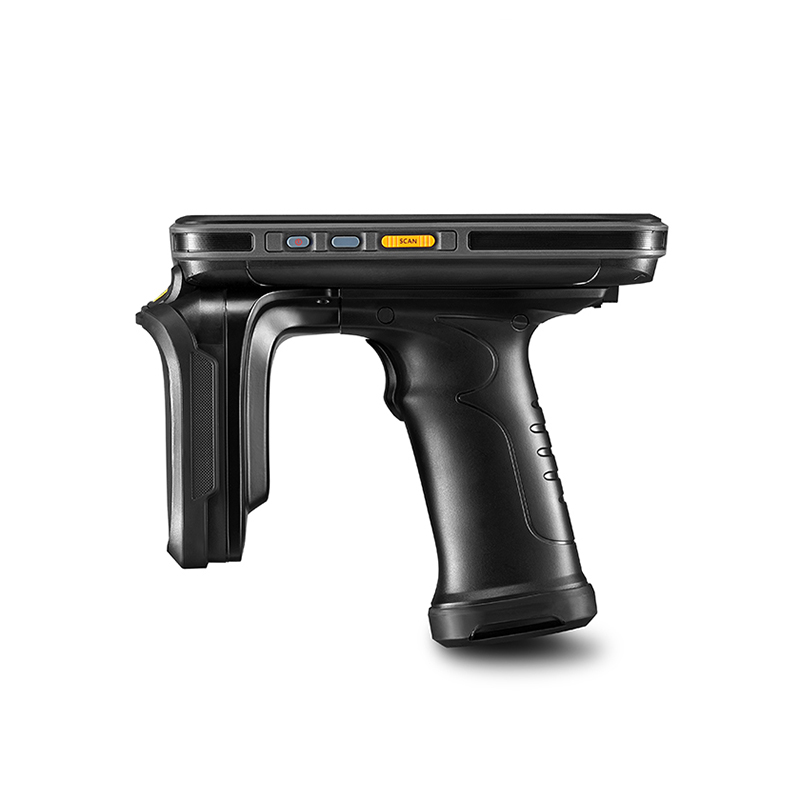

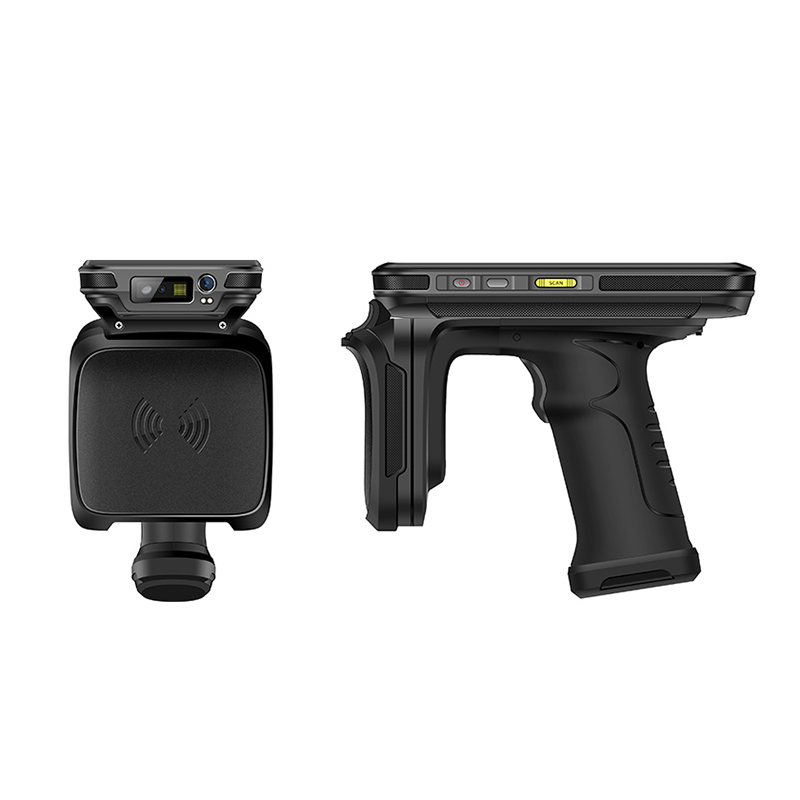

(1) VH-C83 long-distance UHF smart handheld terminal has outstanding fusion performance, Indy R2000 UHF UHF reading and writing function;
(2) It has better sensitivity, which helps to achieve more accurate and faster data collection;
(3) Android 8.1/ 11.0 operating system; Cortex-A53 2.5/2.3GHz octa-core;
(4) 5.2 inches, IPS FHD high-definition screen; 1920*1080 resolution;
(5) The 8000mAh high-voltage battery has a longer standby time;
(6) Support 4G full Netcom support 2.4G/5G dual-band Wi-Fi;
(7) 3GB+32GB/4GB+64GB/6+128GB large-capacity storage is optional;
(8) Support Internet of Things functions such as one-dimensional scanning, two-dimensional scanning, UHF, NFC, iris biometrics, etc.;
(9) Corning glass has a special drop-proof design. After a 1.5-meter drop and 1000 times of 0.5-meter tumbling tests, it still works normally;
(10) IP65 protection level, soft and hard rubber double injection molding process, so that the product is waterproof, dustproof, anti-corrosion, and anti-greasy;
(11) It is widely used in asset management, shoe and clothing retail, library management, vehicle management, warehousing and logistics management, financial management and other fields.
(12) Industry customized exclusive UI design
|
Model No. |
VH-C83 |
|
Parameter |
|
|
Size |
164.2mm x 80.0mm x 24.3mm |
|
Total Weight |
654g |
|
Display screen |
5.2 inches, IPS FHD 1920x1080 resolution |
|
Touch screen |
Corning Gorilla Glass, supports multi-touch, supports glove or wet hand operation |
|
Expansion slot
|
1 SIM card slot |
|
One card slot, SIM or TF, choose one |
|
|
Communication Interface |
USB 2.0 Type-C, OTG, octa-core version supports Type C headset |
|
Audio |
Speakers, 2 microphones |
|
Keyboard |
4 main keyboards, 1 power key, 2 scan keys, 1 multi-function key |
|
Camera |
13 million pixel color camera, support auto focus, flash |
|
GPS navigation |
Built-in GPS global positioning system, error range ±5m |
|
Sensor |
Gravity sensor, light sensor, distance sensor |
|
Performance parameter |
|
|
CPU |
Cortex-A53 2.5/2.3 GHz Eight core |
|
PAM+ROM |
3GB+32GB/4GB+64GB/6GB+128GB |
|
OS |
Android 8.1/11.0；Support SotiMobiControl, SafeUEM, etc. |
|
Development environment |
|
|
SDK |
Terminal Software Development Kit |
|
Development language |
Java |
|
development tools |
Eclipse / Android Studio |
|
Extended memory |
MicroSD (TF) card can be expanded to 128GB |
|
Communication |
|
|
WLAN |
Support IEEE802.11 a/b/g/n/ac protocol, (2.4G/5G dual frequency); built-in antenna |
|
WWAN（Android 8.0） |
2G: 900/1800MHz 3G: WCDMA:B1/B8 CDMA2000 EVDO:BC0 TD-SCDMA:B34/B39 4G: B34/B38/B39/B40/B41 FDD-LTE: B1, B3, B5,B8 |
|
WWAN（Android 11.0） |
2G：GSM850/GSM900/DCS1800/PCS1900 3G:WCDMA:B1/B2B/B4/B5/B8 CDMA20000 EVDO:BCO TD-SCDMA:A/F 4G：B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28A/B28B/B34/B38/B39/B40/B41 |
|
Bluetooth |
Android8.1：Bluetooth v2.1+EDR,3.0+HS，v4.1+HS； Android11.0：Bluetooth5.0 |
|
Bluetooth |
Comply with Bluetooth 4.0 BLE |
|
GNSS |
Integrated GPS, GLONASS and Beidou; built-in antenna, support AGPS |
|
working environment |
|
|
Operating temperature |
-20℃～50℃ |
|
storage temperature |
-40℃～70℃ |
|
Relative humidity |
5%～95% non-condensing |
|
Drop specification |
Within the operating temperature range, all 6 sides can withstand the impact of multiple drops from a height of 1.5 meters to the concrete floor |
|
Rolling test |
Rolling 0.5 meters continuously for 1000 times, and running stably after rolling with 6 contact surfaces, reaching IEC rolling specifications |
|
Static Protection |
±15KV air discharge, ±6KV contact discharge |
|
Protection level |
Host IP65, up to IEC sealing standards |
|
Battery performance |
|
|
battery capacity |
Rechargeable lithium polymer battery 8000mAh |
|
Standby time |
Standby time>500 hours |
|
Charging time |
Charging time 3-4 hours (use standard power adapter and data cable) |
|
operating hours |
Working time>12 hours (depending on usage and network environment) |
|
Barcode collection(optional) |
|
|
1D |
|
|
1D laser scanning module |
Zebra SE965 / Honeywell N4313 |
|
1D barcode type |
UPC/EAV,Code128，Code39，Code,93，Code,11，interleaved 2 of 5，Discrete 2of 5，Chinese 2 of 5，Codabar，MSI,RSS |
|
2D |
|
|
2D scanner |
Zebra: SE4710 / SE4750 / SE4750MR; Honeywell: N6603 |
|
2D type |
PDF417, MicroPDF417, Composite, RSS, TLC-39,Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, Postal Codes,US PostNet,US Planet, UK Postal, Australian Postal,Japan Postal, Dutch Postal |
|
UHF RFID (optional) |
|
|
Support frequency |
915MHz, 865MHz (865-868MHz or 902-928MHz) |
|
supporting agreement |
For EPC C1 GEN2 /ISO18000-6C protocol |
|
Reading distance |
＞25m (circular polarization, indoor); ＞10m (circular polarization, outdoor open environment); ＞21m (linear polarization, indoor); ＞7m (linear polarization, outdoor open environment) |
|
Group read rate |
＞200 tags per second (circular polarization) |
|
power |
1W (30dBm, support +5dBm ~ +30dBm adjustment) |
|
RFID module |
VM-61, based on Impinj Indy R2000 |
|
Antenna parameters |
Linear polarization antenna (1.8dBi)/Circular polarization antenna (4dBi) |
|
HF RFID(optional) |
|
|
Frequency |
13.56MHz |
|
Protocol |
For ISO15693, ISO14443A/B dual protocol |
|
Distance |
3-7CM (related to label and environment) |
|
Iris recognition (optional) |
|
|
Recognition time |
<150ms |
|
Working distance |
20-40cm |
|
FAR |
1/10000000 |
|
Protocol standard |
ISO/IEC 19794-6, GB/T 20979-2007 |
|
packing list |
Lithium battery, charging head, DC charging cable, USB charging cable |
|
packing list |
Lithium battery, charging head, DC charging cable, USB charging cable |
