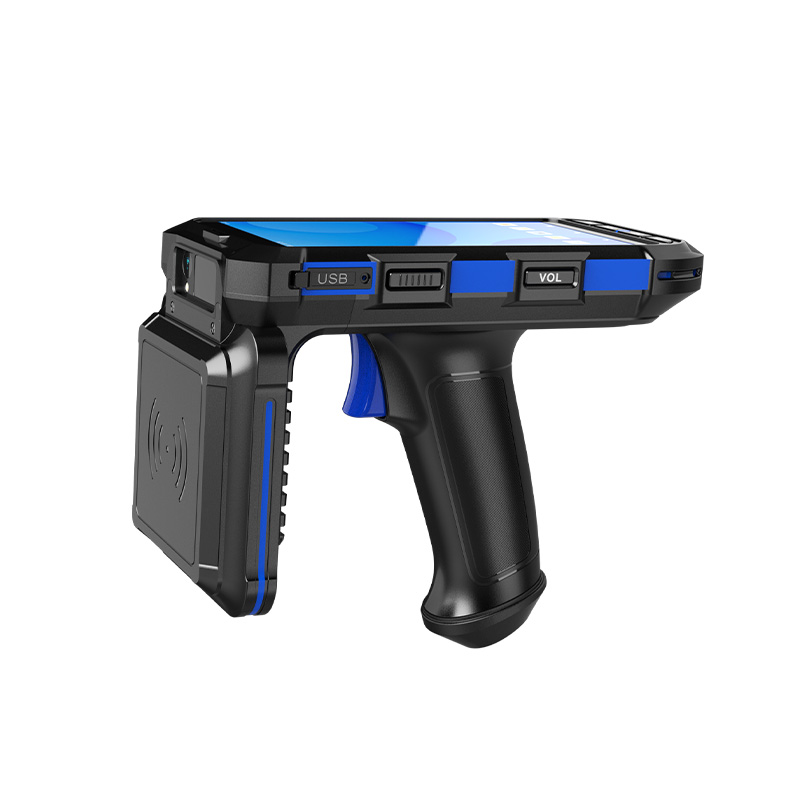

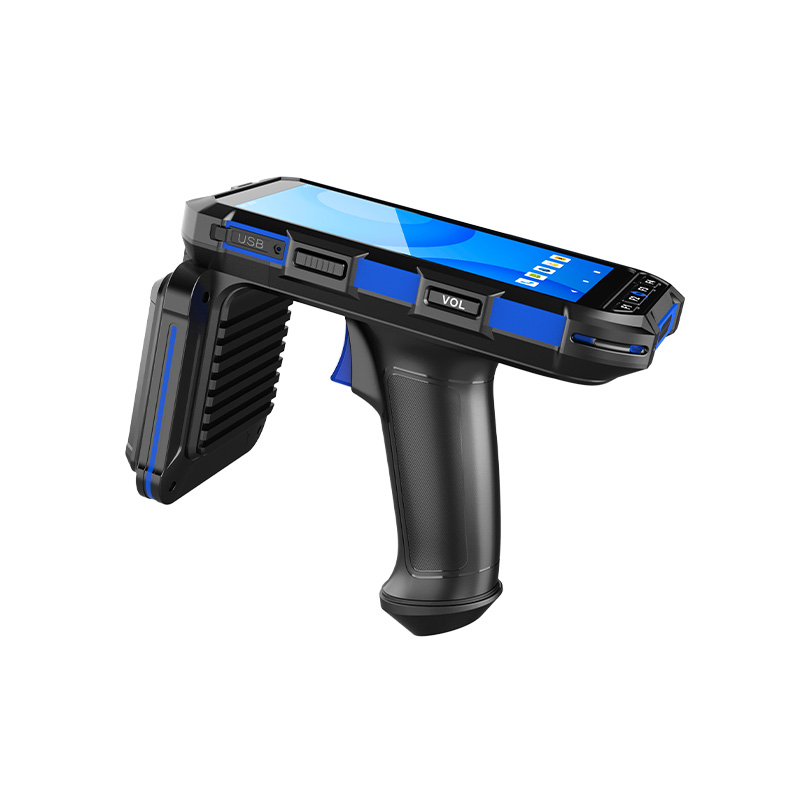

Industry-leading high-speed eight-core CPU, main frequency 2.0GHz, 5.5-inch IPS high-brightness display, breaking the field of vision, excellent RFID reading and writing performance and multi-tag inventory capability, self-developed new generation of high-performance four-arm Excellent protection performance and high reliability of helical antenna, 7200mAh high-capacity polymer lithium battery, long battery life, ergonomic and comfortable handle design.
|
Basic parameters |
|
|
Machine weight |
450g |
|
Display |
5.5-inch IPS high-definition screen, resolution 720*1440 |
|
Touch screen |
Industrial grade multi-touch capacitive screen |
|
Expansion Slots |
2 sim card slots, 2 PSAM card slots, 1 TF card slot |
|
Communication interface |
Type-c data interface |
|
indicator light |
charging indicator |
|
Keyboard |
Scan key、Function key |
|
Camera |
Front 5 million, rear 13 million pixel camera,With flash, auto focus |
|
Flashlight |
Low-power LED lighting, emergency use |
|
GPS |
GPS+Beidou Dual Navigation System Error range ±5m 误差范围±5m |
|
Performance parameters |
|
|
CPU |
Octa-core 64-bit processor, clocked at 2.0GHz |
|
Memory capacity |
RAM：2GB ROM：16GB RAM：4GB ROM：64GB |
|
Extended memory |
Support 256GB Micro Sd card |
|
Operating System |
Android 10.0 |
|
Data communication |
4G:TD-LTE Band38/39/40/41 FDD-LTE Band 1,2,3,4,7,17,20 3G:WCDMA( 850/1900/2100MHz); 2G:GSM/GPRS/Edge （850/900/1800/1900MHz） |
|
WIFI |
2.4G/5G dual-band，Compliant with IEEE802.11a/b/g/n/ac 符合IEEE802.11a/b/g/n/ac |
|
Bluetooth |
Compliant with Bluetooth 4.1 |
|
Work environment |
|
|
Operating temperature |
-20℃～50℃ |
|
Storage temperature |
-20℃～70℃ |
|
Relative humidity |
5%～95% non-condensing |
|
Protection class |
host IP65 |
|
Battery performance |
|
|
Battery capacity |
7200mAh lithium polymer battery |
|
Standby time |
Turn off functions such as wireless communication and can stand by for 360 hours |
|
Charging time |
Less then 6 hours |
|
Working time |
more than 14 hours (one full charge) |
|
Bar code collection (optional) |
|
|
Honeywell-6703/other |
|
|
PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, Postal Codes,US PostNet, US Planet, UK Postal, Australian Postal,Japan Postal, DutchPostal etc |
|
|
RFID optional |
|
|
UHF |
|
|
Support frequency |
915MHz、865MHz （865-868MHz or 902-928MHz） |
|
Support protocol |
For EPC C1 GEN2 ISO18000-6C protocol |
|
Reading distance |
0-20m distance / related to tags and environment |
|
HF |
|
|
Support frequency |
13.56MHz |
|
Support protocol |
For ISO15693、ISO14443 dual protocol |
|
Reading distance |
0-7cm（related to labels and environment） |
|
LF |
125K/134.2K animal ear tag |
|
HF（CPU card ） |
Support reading and writing of CPU card and use with PSAM |
|
Active 2.45G （customized） |
Distance 200m 200 labels can be read at one time |
|
NFC function（optional ） |
|
|
Operating frequency |
13.56MHz |
|
Protocol standard |
ISO14443A/B ISO15693， NFC-IP1,NFC-IP2 etc |
|
Label standard |
M1 card（S50，S70）， CPU card ，NFC tag etc |
|
Read and write distance |
3cm-5cm |
|
Accessories |
|
|
Standard configuration |
1 lithium - ion battery, 1 power adapter, 1 Type - c charging cable |
|
Optional |
Charging base |
