VS-V10T-inch car tablet-Shenzhen Vanch Intelligent Technology Co,.Ltd

VS-V10T 10.1-inch car tablet designed specifically for in car scenarios. Equipped with a high-energy and low-power 8-core ARM architecture processor and an interactive open Android 12 operating system, the computing power is powerful; Rich communication functions such as Wi-Fi-5, 4G LTE, and Bluetooth support external car mounted mushroom antennas, with wider and stronger signals. The vehicle grade aviation plug interface supports multiple function adapter line extensions, with flexible interface expansion; By using special technology to handle dust, water, vibration, high and low temperature resistance, it can be used in any environment; There are also various functions to choose from, such as wide compression module, NFC, VESA bracket, etc., with rich and diverse functions, suitable for forklifts, agricultural machinery, stackers, cranes, cars, trucks, carts and other vehicle models.

Purchase code (product model)	VS-V10T
Specification parameters
Product Form	10.1-inch car tablet computer
texture of material	PC+ABS+10%GF

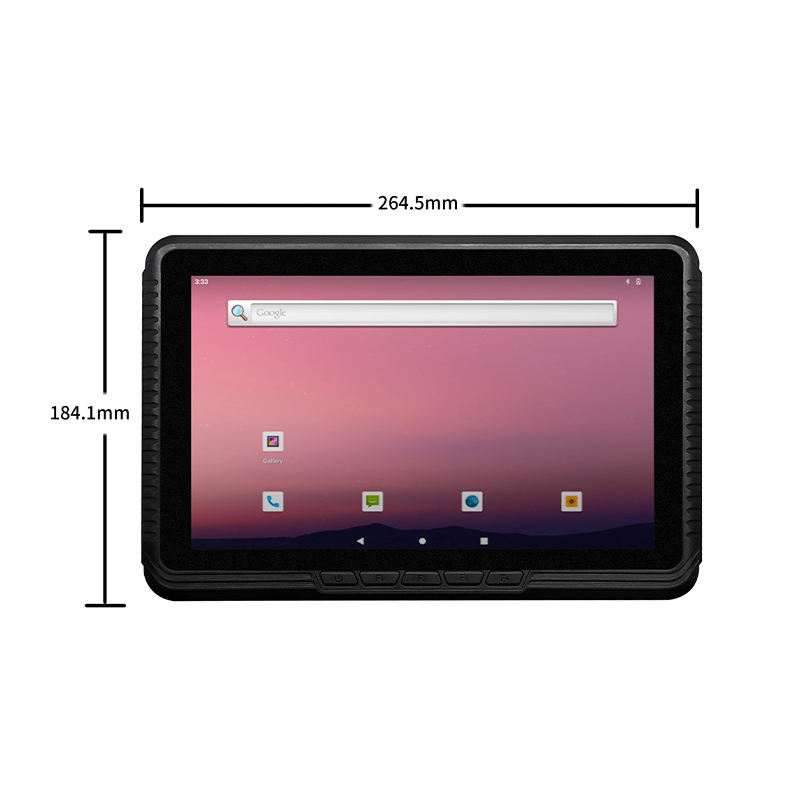

Appearance size	264.5184.123.0mm
weight	824g
Whole machine color	black
CPU	MT 6789，2 Arm ® Cortex-A76 cores operating at 2.2 GHz，6 Arm ® Cortex-A55 cores operating at 2.0 GHz
GPU	ARM G57 MC2
Memory storage	RAM 4GB LPDDR4X ROM 64GB UFS
operating system	Android 12, optional GMS
display	Type: HD Size: 10.1 inch 16:10 Resolution: 800 * 1280 IPS Brightness: 700cd/㎡ (later upgraded to 1000cd/㎡)
touch screen	5-point tempered glass capacitive screen G+G, hardness 8H
Key	Power on/off button * 1 Volume - Key * 1 (F1 key) Volume+key * 1 (F2 key) Custom key * 1 (F3 key) Custom key * 1 (F4 key)
indicator light	1. Power on indicator light (blue when turned on) 2. Power on indicator light (red when DC is powered on) 3. Low battery indicator light (when there is a battery, the low battery red light flashes and does not light up normally)
speaker	2.5W single speaker
Mi Tou	Single MIC
Real time clock	Built in 2032 RTC dry battery
Battery (optional)	Optional, Built in polymer lithium-ion battery 2000mAh/3.7V
WIFI	Frequency band: WIFI 802.11 (a/b/g/n/ac) Frequency: 2.4G+5.0G (5.1G+5.8G) dual band WIFI Other: Supports seamless roaming of AP
Blue Night	BT 5.2 isochronous channels feature BLE_125K -104 dBm
4G	LTE Cat 4 GSM：2+3+5+8 WCDMA：1+2+5+8 TD-S：34+39 TDD：38+39+40+41N(2535mhz~2655mhz) FDD：1+2+3+4+5+7+8+17+20+28a+28b
GPS	Supports GPS (L1 1.575GHz C/A code), Beidou (B1 1.561GHz), GLONASS (L1 1.602GHz)
NFC (optional)	NFC IC:NXP557 HF frequency band 13.56MHz, compatible with EMVCo standard, Supporting protocols: ISO15693, ISO14443: ISO14443Type A, ISO14443Type B

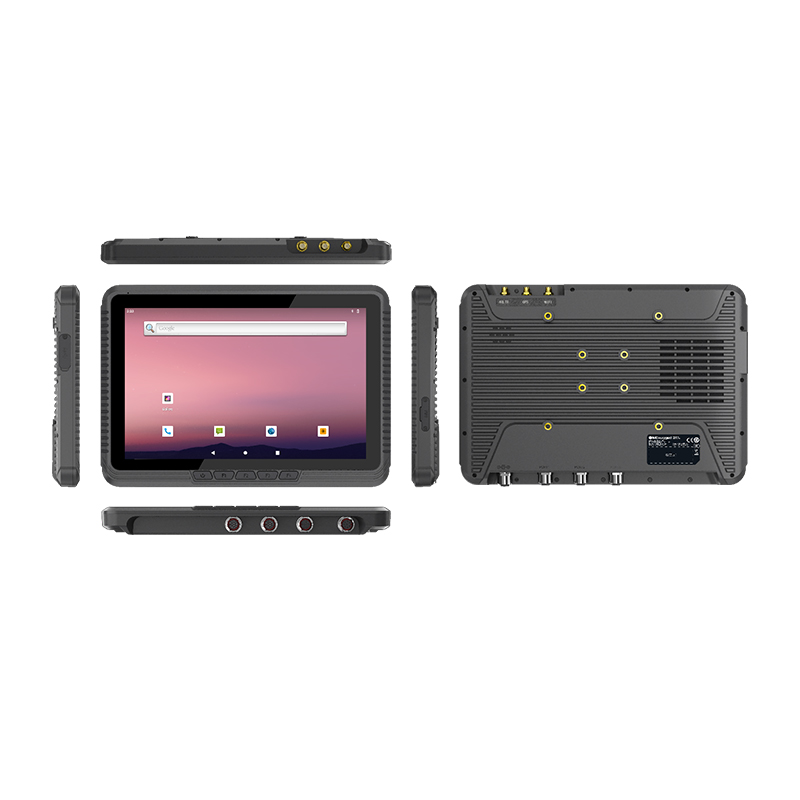

Interface definition	SIM card slot MICRO-SIM x 1
	Standard USB-A port/data transmission USB 2.0 * 1, USB A port, HOST data transfer
	Power interface DC input (Input: 12V)
	PORT1 (M12-12) (optional) 100Mbps Ethernet port, standard 8-pin Ethernet signal (100Mbps high-speed Ethernet)
	PORT2 (M12-12) (optional) RS232 * 1+RS232/RS485 (standard) * 1, 9-PIN DB9 fully functional serial port RS232; 3PIN data transmission RS485 (default)/3PIN data transmission RS232
	PORT3 (M12-12) (optional) USB 2.0 * 1+USB 2.0 (default)/CAN * 1+CVBS * 1 USB 2.0 standard signal * 2; Optional CAN for customer debugging
Environmental parameters	Working temperature: -20 ° C to 60 ° C (adapter mode)- 10 ° C to 60 ° C (battery mode)
	Storage temperature: -30 ° C to 70 ° C
	± 8kV contact discharge, ± 15kV air discharge
	Humidity: 95% without condensation
Certification system	IP65
	CE European Compulsory Certification
	CCC China Compulsory Certification
	MIL-STD-810H
	FCC US Electromagnetic Compatibility Certification
Standard accessories	WIFI rod antenna 2.4~2.5GHZ /5.15~5.85GHz ，2±0.5 dBi
	GPS car mounted mushroom antenna Active GPS mushroom antenna, with a wire length of 3M and a gain of 28dBi ± 2dBi
	4G rod antenna 4G rod antenna Frequency range: 824~960/1710~2700MHz Return loss: -6dB or less Frequency range: 3.4~3.8/4.4~4.9 GHz Return loss: -10dB or less Gain: 2.0 ± 0.2 dBi
	Power adapter cable 8 PIN aviation plug with a diameter of 4.0 power port (suitable for cigarette lighters, car chargers, etc.) 30CM, used for non car use environments, meeting customer 220V input requirements.
Optional accessories	The power adapter 12V4A DC φ 4.0 adapter	Choose between two power sources
	Wide compression module When the power supply is unstable, a wide voltage requirement is met by connecting an external 9V~36V wide voltage DC module, 9-36V wide voltage input, 12V ± 0.5V constant voltage output to the device
	Bracket RAM 38 * 30mm ball head	either-or
	Bracket VESA 100*100
	Functional adapter cable Multi functional adapter cable selection, 12PIN to USB 2.0 * 1+USB 2.0 * 1 (default) /CAN1+CVBS1
	Functional adapter cable Multi functional adapter cable selection, 12PIN to full function RS232 power cable+serial communication 485	either-or
	Functional adapter cable Multi functional adapter cable selection, 12PIN to full function RS232 power cable+serial communication 232
	Functional adapter cable (needs to be modified to add LAN to 4G small board) Multi functional adapter cable selection, 12PIN to 100Mbps RJ45 (with LED)
	Functional adapter cable Multi functional adapter cable selection, 12 PIN to 12 loose wires 1.2m Meet customer's self pickup needs
	GPS rod antenna
