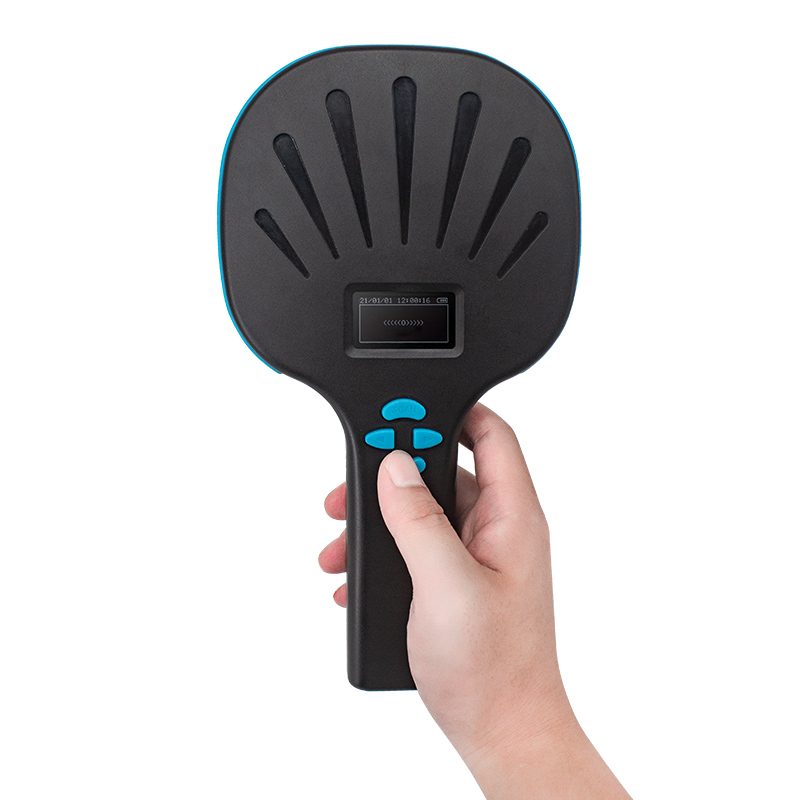

VH-L2615 card reader is an animal tag reader based on radio frequency (RFID) identification and barcode scanning technology, using RFID low frequency full duplex (FDX-B) format passive radio frequency technology. The card reader complies with ISO 11784/5 international standard protocol, operates at a frequency of 134.2KHz, has high stability, can identify all EMID and FDX-B format tags, supports one-dimensional and two-dimensional code scanning, and is widely used in animal management, fish management, automatic feeding equipment and other fields.
|
Purchase code (product model) |
VH-L2615 |
|
Performance Parameters |
|
|
Working frequency band |
125Khz/134.Khz |
|
Card reading type |
EMID, FDX-B, etc. |
|
Card reading speed |
0.2s |
|
Card reading distance |
2-12mm glass tube label>15cm 30mm animal ear tag>25cm (depending on the label) |
|
Scanning mode |
CMOS image scanning |
|
Screen |
128*64 high brightness OLED display |
|
Operating voltage |
5V |
|
Operating current |
100mA |
|
Operating temperature |
-20℃~70℃ |
|
Card reading time |
＜100ms |
|
Card reading distance |
0.5S |
|
Dimensions |
267mm×148mm×38mm |
|
Weight |
About 500g |
|
Supported code system |
2D：PDF417, QR Code(Model 1/2), DataMatrix(ECC200, ECC000,050, 080, 100,140),Aztec, Maxicode,etc. |
|
Operating system |
Win XP\Win CE\Win 7\Win 10\LIUNX\Vista\Android |
|
Communication method |
Wired, wireless 2.4g, Bluetooth |
